概述

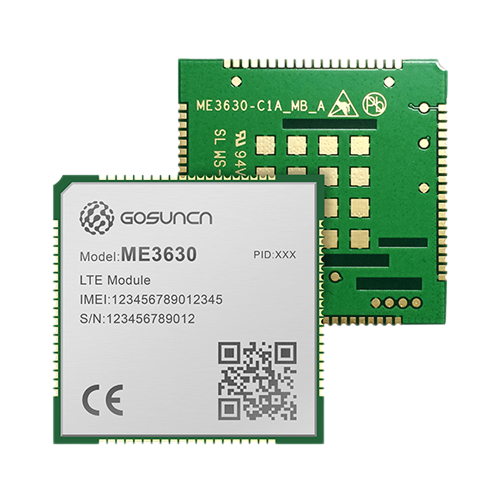

ME3630模组采用了LCC 30×30mm统一封装，并可兼容支持Mini PCI封装。ME3630可以支持LTE TDD/LTE FDD/UMTS/GSM四模全球频段。

ME3630模组支持LTE Cat.4速率，为行业用户提供可靠的4G数据连接。凭借紧凑封装、工业级温宽以及软硬件可靠性保障，ME3630可广泛应用于智能电表、车载娱乐系统、车载热点、安防信息采集、远程医疗、POS、工业路由器等多类型行业应用。

产品亮点

LCC Form Factor

LTE Cat.4

GNSS

8-wires UART

Rx diversity

USB 2.0

LTE FDD/WCDMA &GSM

Embedded TCP/UDP

-40℃ ~ 85 ℃

Embedded FTP/HTTP

Auto suspend

Remote wakeup

OpenLinux

技术规格

基本属性

* LCC Form Factor (80 pins)

* Pin-to-Pin with LCC 30*30

* Dimensions: 30mm × 30mm× 2.3mm

* Weight: About 4.0g

* Frequency Band :

--LTE FDD/LTE TDD/WCDMA/GSM

电气特性&灵敏度

* Transmit Power:

--LTE: 23 ±2.7dBm (Power Class 3)

--WCDMA : 24 +1/-3dBm (Power Class 3)

--GSM900 : 33±2dBm (Power Class 4)

--GSM1800: 30±2dBm (Power Class 1)

* Receiving sensitivity:

--Rx Diversity

* Power Supply :

--3.4V -- 4.2V(3.8V is recommended)

环境可靠性

* Operation temperature: -30°C to +75°C

--Extreme Operating temperature: -40°C to +85°C

* Storage temperature: -40°C to +85°C

* Humidity: 5%~ 95%

RF频段

* E3C

1.LTE FDD: B1,B3,B7,B8,B20,B28

2.LTE TDD: B40

3.WCDMA: B1,B8

4.GSM: B3,B8

* J2A/J2A V3A

1.LTE FDD: B1,B3,B5,B7,B8,B18,B19,B21

2.WCDMA: B1,B5,B6,B8,B19

* A1C

1.LTE:B1,B2,B3,B5,B7,B8,B28

2.LTE TDD: B40

3.WCDMA:B1,B2,B5,B8

4.GSM:B2,B3,B5,B8

数据特性

* LTE FDD

--Uplink 50Mbps / Downlink 150 Mbps

* TD-LTE

--Uplink30Mbps / Downlink 112Mbps

* WCDMA

--Uplink 5.76Mbps / Downlink 42Mbps

* GPRS (Multi-slot Class 10)

--Uplink 85.6 kbps / Downlink 85.6 kbps

硬件接口

* USB 2.0 High speed (480 Mbps)

* UART1(8-wires)

* UART2(2-wires)

* SIM interface (1.8/3.0V)

* SPI

* I2C

* Antenna (RF PAD for Primary, Diversity and GPS)

* LED indication

* Reset & Power-on

* WAKE-IN & WAKE-OUT

* 2nd SIM(Only support by PID:A1C)

* SDCC(Only support by PID:A1C)

* Ethernet (Only support by PID:A1C)

* SGMII (Only support by PID:C2A)

应用功能

* OpenLinux

* Support embedded TCP & UDP protocols

* Support protocols PAP and CHAP used for PPP connection

* USB Selective Suspend & Remote wakeup

* RAS /ECM/NDIS

* Control Via AT Commands according to 3GPP TS27.005, 27.007 and Gosuncn RichLink extended AT commands

SMS Features

* Support Text and PDU mode

* Point to point MO and MT

* SMS Status Report

* SMS centre address setting

* Management of SMS

驱动&工具

* Drivers

--Windows XP, Vista, 7 , 8, Win CE, Windows Mobile

--Linux

--Android

* Diag-log Tool

* Firmware Update Tool

认证

* CE/RoHS/JATE/TELEC/GCF/PTCRB/Anatel/NCC

* Softbank/KDDI/DOCOMO/德国电信
